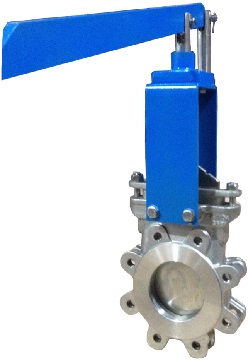

MTB-LHY Series Lever Operated Knife Gate Valve

1. Product Overview

G.A drawing of MTB-LHY series lever operated knife gate valve.

Part No.	Part Name	Ductile Iron	Carbon Steel	Stainless Steel
1	Body	GGG40	WCB	CF3M
2	Disc	201/304	201/304	316L
3-4	Standard Parts	201	201	304
5	Packing	PTFE+EPDM	PTFE+EPDM	PTFE+EPDM
6	Cover	WCB	WCB	CF8
7-9	Standard Parts	201	201	304
10	Stem	2Cr13	2Cr13	304
11	Yoke	Q235(Spray)	A3(Spray)	A3(Spray)
12	Standard Parts	201	201	304
13	Yoke Head	Q235	A3(Spray)	A3(Spray)
14	Handle	2Cr13	A3(Spray)	A3(Spray)
15	Standard Parts	201	201	304
16	Pin	201	201	304
17	Standard Parts	201	201	304
18	Wedge Blocks	GGG40	WCB	CF3M
19	Seat	EPDM	EPDM(Changeable）	EPDM(Changeable）
20	Metal Gland	Q235	Q235(Changeable）	Q235(Changeable）

The outline drawing of MTB-LHY series lever operated knife gate valve

DN(mm)	L	D	D1	D2	N-Th	d	H
50	48	165	125	99	4-M16	Ø18	320
65	48	185	145	118	4-M16	Ø18	350
80	51	200	160	132	8-M16	Ø18	370
100	51	220	180	156	8-M16	Ø18	410
125	57	250	210	184	8-M16	Ø18	460
150	57	285	240	212	8-M20	Ø23	510
200	70	340	295	266	8-M20	Ø23	580
250	70	395	350	319	12-M20	Ø23	700
300	76	445	400	370	12-M20	Ø23	800
350	76	505	460	430	16-M20	Ø23	890
400	89	565	515	480	16-M24	Ø27	1000
450	89	640	585	548	20-M24	Ø27	1160

1. Dimensions for BS DIN EN standards.
2. All dimensions are in mm unit.

DN(mm)	L	D	D1	D2	N-Th	d	H1
50	48	165	125	99	4-M16	Ø18	320
65	48	185	145	118	4-M16	Ø18	350
80	51	200	160	132	8-M16	Ø18	370
100	51	220	180	156	8-M16	Ø18	410
125	57	250	210	184	8-M16	Ø18	460
150	57	285	240	211	8-M20	Ø23	510
200	70	340	295	266	12-M20	Ø23	580
250	70	405	355	319	12-M24	Ø27	700
300	76	460	410	370	12-M24	Ø27	800
350	76	520	470	429	16-M24	Ø27	890
400	89	580	525	480	16-M27	Ø30	1000
450	89	640	585	548	20-M27	Ø30	1160

1. Dimensions for BS DIN EN standards.
2. All dimensions are in mm unit.

DN(mm)	L	D	D1	D2	N-Th	d	H1
50	48	152	120	92	4-M5/8-11	Ø19	320
65	48	178	140	105	4-M5/8-11	Ø19	350
80	51	191	153	127	4-M5/8-11	Ø19	370
100	51	221	191	157	8-M5/8-11	Ø19	410
125	57	254	216	186	8-M3/4-10	Ø22	460
150	57	279	242	216	8-M3/4-10	Ø22	510
200	70	343	299	270	8-M3/4-10	Ø22	580
250	70	406	362	324	12-M7/8-9	Ø25	700
300	76	483	432	381	12-M7/8-9	Ø25	800
350	76	533	476	413	12-M1-8	Ø29	890
400	89	597	540	470	16-M1-8	Ø29	1000
450	89	635	578	533	16-M11/8-7	Ø32	1160

1. Dimensions for ANSI standards.
2. All dimensions are in mm unit.

DN(mm)	L	D	D1	D2	N-Th	d	H1
50	48	155	120	100	4-M16	Ø18	320
65	48	175	140	120	4-M16	Ø18	350
80	51	185	150	130	8-M16	Ø18	370
100	51	210	175	155	8-M16	Ø18	410
125	57	250	210	185	8-M20	Ø23	460
150	57	280	240	215	8-M20	Ø23	510
200	70	330	290	265	12-M20	Ø23	580
250	70	400	355	325	12-M22	Ø25	700
300	76	445	400	370	16-M22	Ø25	800
350	76	490	445	415	16-M22	Ø25	890
400	89	560	510	475	16-M24	Ø27	1000
450	89	620	565	530	20-M24	Ø27	1160
